Fisnar / Dispensing ValvesInterested?

Fisnar – Valves – Positive Displacement Valves

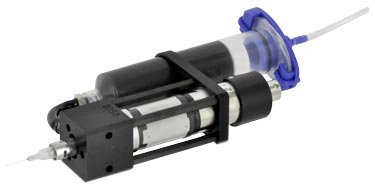

Fisnar PDV1000 positive displacement augerPDV1000 Positive Displacement Auger Valve
The PDV-1000 precision auger valve is suitable for all medium to high viscosity paste, epoxy, solder-paste and other filled material. Capable of dispensing a minimum shot size of 0.020″ (0.508mm), the PDV-1000 uses an auger servo-motor driven screw.
Click here for more information

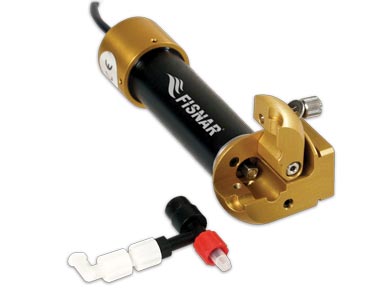

Fisnar RV5000DPMRV5000DPM – Positive Displacement Auger Valve
The RV5000DPM allows for easy maintenance and is suitable for abrasive materials and two-part fluids. Removing and replacing the auger maintains the valve’s accuracy and increases the life of the valve by providing less wear-and-tear on the motor.
Click here for more information

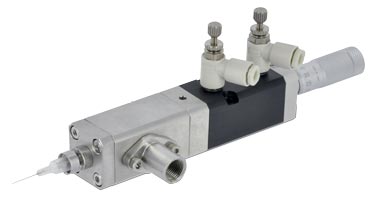

Fisnar VDP150VDP150 – Adjustable, 0.005 – 0.15cc
The VDP150 plunger pump is a pneumatically operated positive displacement valve designed for dispensing constant volume shots of low to medium viscosity materials within 1%. The VDP150 has two integral check valves to control the flow of material.
Click here for more information

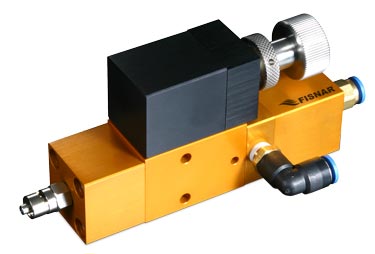

Fisnar VDP100VDP100 – Adjustable, 0.1 – 0.9cc
The VDP100 is an adjustable pneumatically operated positive displacement valve designed for dispensing constant volume shots of low to medium viscosity materials within 1%, such as oil and grease. The VDP100 valve has a range up to 0.9cc.
Click here for more information

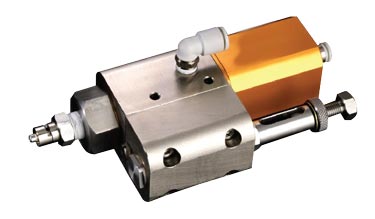

Fisnar VDP305VDP305 – Adjustable, 0.5 – 5cc
The VDP305 is an adjustable pneumatically operated positive displacement valve designed for dispensing constant volume shots of low to high viscosity materials within 1%, such as oil and grease. The VDP305 valve has a range from 0.5cc up to 5cc.
Click here for more information

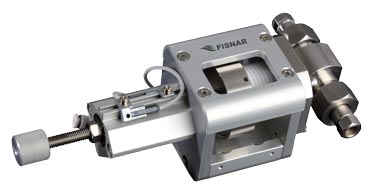

Fisnar VBP117VBP117 – Volatile Fluids – Volumetric Valve
The VBP117 is designed for positive displacement dispensing and filling of volatile low viscosity fluids, such as battery electrolyte, reagent and acid. The VBP117 is also suitable for lubrication applications. Operation is by a frictionless bellows. Teflon materials provide excellent resistance to chemical compositions.
Click here for more information

Interested in these products?

To enquire, please call us at our Kuala Lumpur Branch, Penang Branch or Johor Bahru Branch, or email us at info@tecomas.com.my.
